Low Carbon or PVC Coated Welded Wire Mesh Rolled and Panel in Green White Yellow
Description:
The welded wire mesh is welded by excellent low-carbon steel wires and passivated and plasticized through cold plating (electroplating), hot dipping and PVC plastic coating. With flat surface, even mesh count, firm welding spots and stable structure, it features its strong completeness, partial good machining performance, stability, excellent corrosion resistance and rush prevention.
It is made from choice plain steel wire and stainless steel wire, which shows good corrosion-resistance and oxidation-resistance, widely used for poultry houses, egg baskets, runway enclosures, draining racks, porch guards, rat-proofing, safety guards on machines, animal and plant pens and shelves, etc
PVC coated Welded Mesh Panels can be galvanized then PVC coated or without galvanized then PVC coated. The most popular color is RAL6005, RAL6009, RAL9017.
Materials & Finishes
1.Welded Wire Mesh Material: Low carbon steel wire,Stainless steel wire
2.Welded Wire Mesh Type:
Electro galvanized after or before welded wire mesh
Hot dippd galvanized after or before welded wire mesh
PVC coated welded wire mesh
Stainless steel welded wire mesh
3. Advantage: good corrosion resistance and oxidation resistance
4. Application: Strengthen protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries,building construction,General Use
5.Specification:
| Specification List of Welded Wire Mesh |
| Opening | Wire Diameter<BWG> |
| In inch | In metric unit(mm) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
Applications:
PVC coated Welded mesh panels are utilized as guards in buildings and factories, as animal enclosure and fence in agriculture; it is also used in horticulture industry as tree guards, plant protection.
Please specify the following when ordering our panels or gratings:
1: Center to center distance of the panel;
2. Panel width;
3.Panel length;
4. Wire Diameter before PVC coated.
Some Standard Welded Wire Mesh Panels Sizes:
1.5mm Wire Diameter, 1/2" X 1/2" Mesh Opening;
2mm Wire Diameter, 1" X 1" Mesh Opening;
3mm Wire Diameter, 1" X 1" Mesh Opening;
3mm Wire Diameter, 1-1/4" X 1-1/4" Mesh Opening;
4mm Wire Diameter, 1-1/2" X 1-1/2" Mesh Opening;
2mm Wire Diameter, 2" X 2" Mesh Opening;
3mm Wire Diameter, 2" X 2" Mesh Opening;
4mm Wire Diameter, 2" X 2" Mesh Opening;
5mm Wire Diameter, 2" X 2" Mesh Opening;
6mm Wire Diameter, 4" X 2" Mesh Opening;
Special sizes can be custom made.
Today, we have received orders from more than 20 countries. Our old clients are from USA, Canada, Russia, Norway, Estonia, Latvia, Australia, Chile, Saudi Arabia, Egypt, India, Singapore, Malaysia and Thailand.

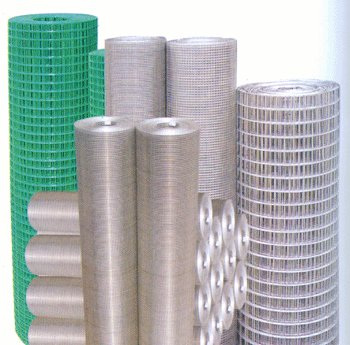

Product Picture
